NTT DVS 2024 - DIY KIT
DIY Pedestrian Safety System (PSS) Kit
The DIY PSS Kit offers a complete set of components designed for easy self-installation of a Pedestrian Safety System on commercial vehicles. Perfect for fleet managers, small businesses, or technically skilled individuals looking to enhance vehicle safety and comply with pedestrian protection regulations without relying on external installers.
What’s Included:
- High-resolution cameras optimized for blind spot monitoring
- Proximity sensors for pedestrian detection
- Audible and visual warning units
- Central control module with easy-to-use interface
- Mounting brackets and hardware
- Comprehensive installation guide with step-by-step instructions
Features:
- Cost-Effective: Avoid professional installation fees by installing the system yourself.
- Customizable Configuration: Flexible system design to suit various vehicle models and sizes.
- Expandable: Compatible with additional cameras and sensors for broader coverage.
Prepare for London’s 2024 DVS Changes

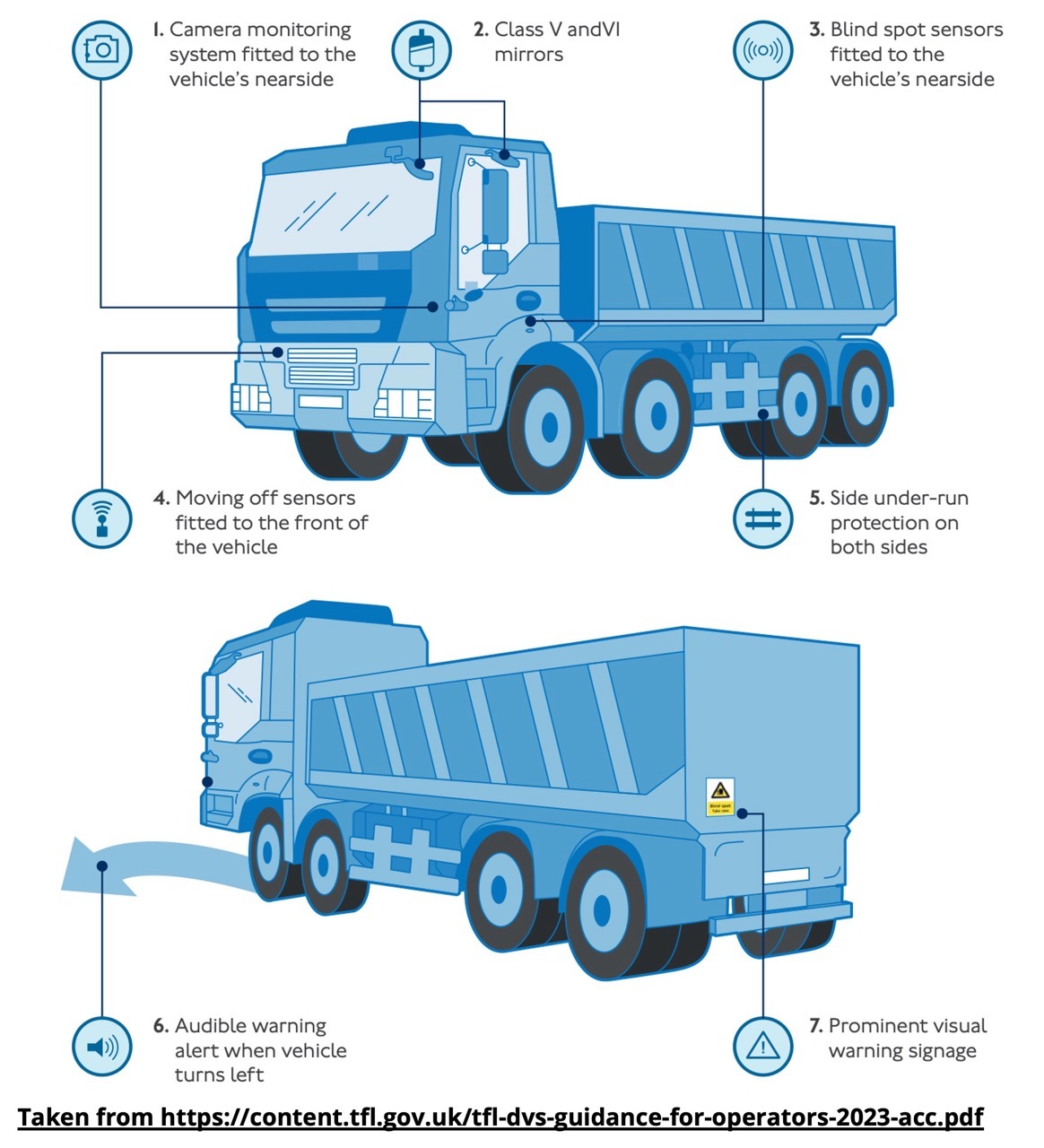

Starting October 28, 2024, Transport for London (TfL) will enforce stricter Direct Vision Standard (DVS) regulations. All HGVs over 12 tonnes must meet a minimum 3-star rating and include two critical safety systems:
- Blind Spot Information System (BSIS)
- Moving Off Information System (MOIS)
Introducing the NTT DVS 2024 Progressive Safe System
Our fully compliant and AVI-endorsed system ensures your fleet meets all TfL Progressive Safe System requirements—making your entry into London seamless, safe, and certified.
Key Features
- AI-Powered Cameras (BSIS & MOIS): Detect pedestrians, cyclists, and other VRUs in blind spots.
- Smart Filtering: Ignores stationary objects to prevent false alerts.
- Optical Indicators: Intuitive LED warnings inside the cabin for real-time visual alerts.
- Sound Buzzer & Outdoor Speaker: Audible alerts for driver and external VRUs.
- Information Processing Unit: CAN-connected control unit reads steering, speed, gear, and pedal inputs for near-zero response time.
- Monitor: Displays BSIS camera visuals inside the cabin.
- Quiet Mode: Disables external speaker at night to comply with urban noise regulations.
Compliance with 2024 TfL Progressive Safe System
Meets All TfL Requirements

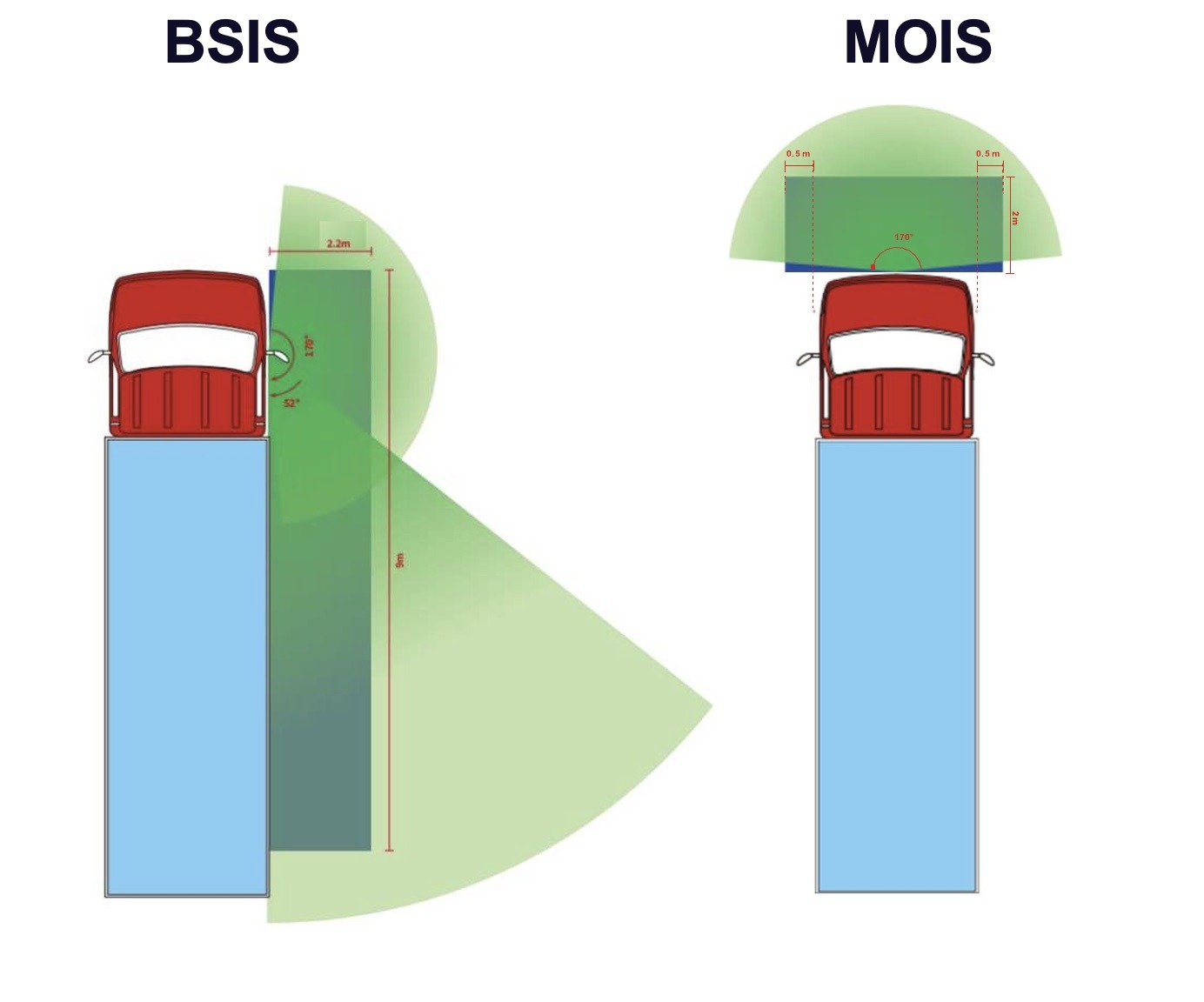

- BSIS – Blind Spot Information System: Full nearside detection of vulnerable road users. Filters out stationary objects.
- MOIS – Moving Off Information System: Front-mounted system alerts driver to hazards when starting from rest.
- Audible Warnings: Indoor buzzer and external loudspeaker warn both driver and nearby VRUs.
- External Signage: A3-sized safety signs clearly warn of blind spots.
- Optical Warning Indicators: Show real-time presence of VRUs inside the cab.
- Quiet Mode: Mutes outdoor speaker at night to meet noise regulations.
- CAN-Connected Processing Unit: Controls and synchronizes all system components.
- Cabin Monitor: Displays real-time footage from AI camera systems.
Certified by AVI
The NTT DVS 2024 system has been tested and officially endorsed by the Association of Vehicle Installers (AVI) — the UK’s only recognized body for DVS certification. Installation is handled by qualified professionals and includes documentation for TfL permit approval.

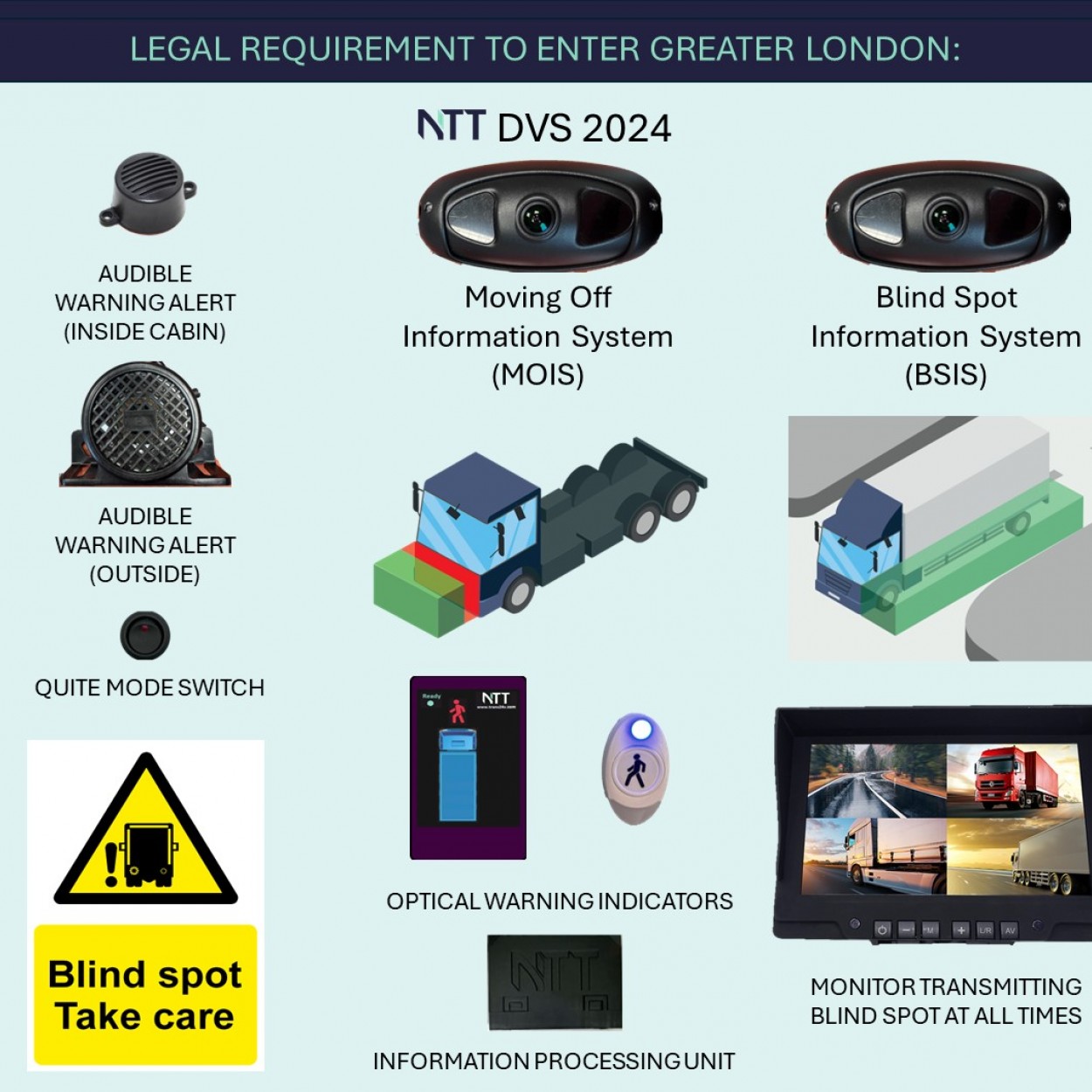

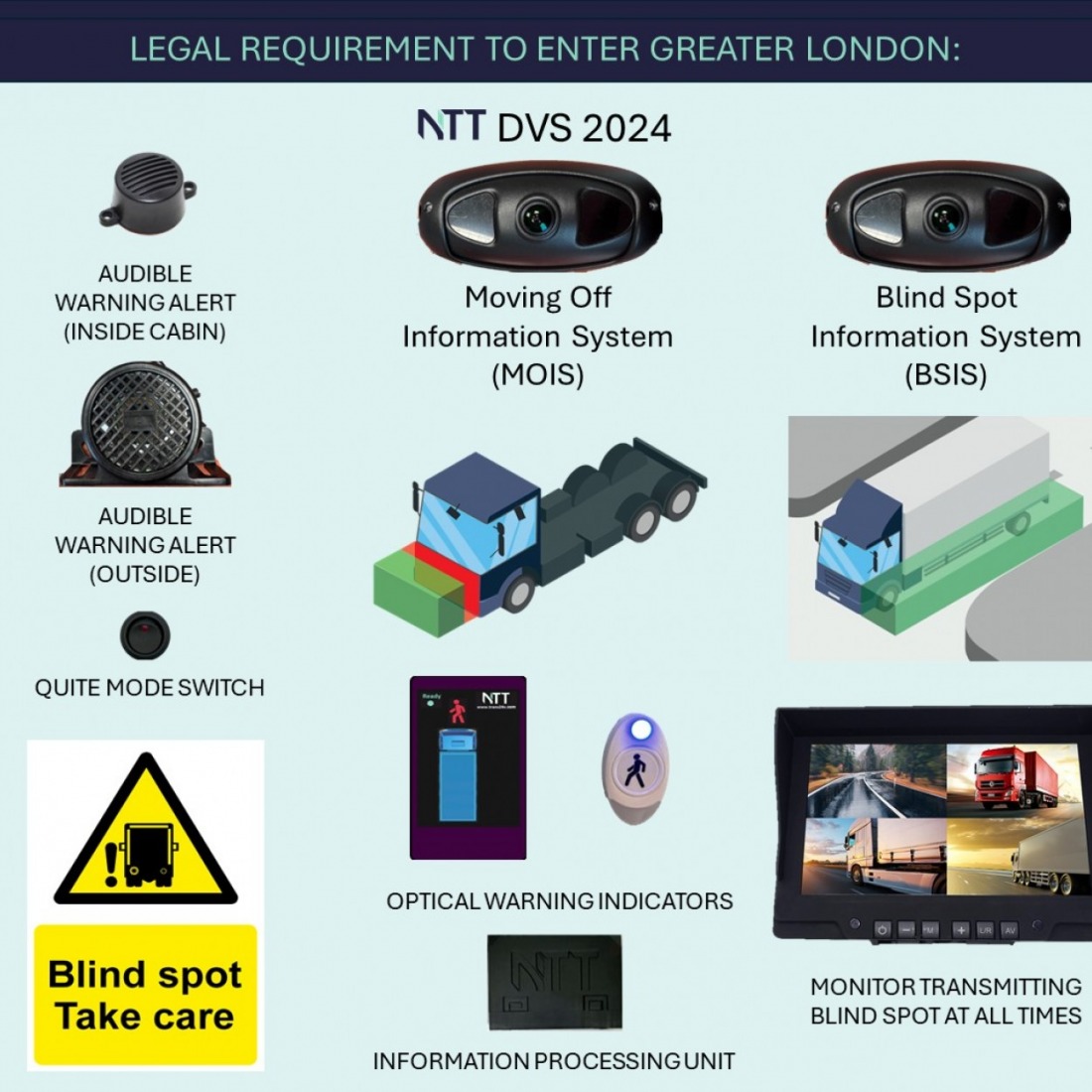

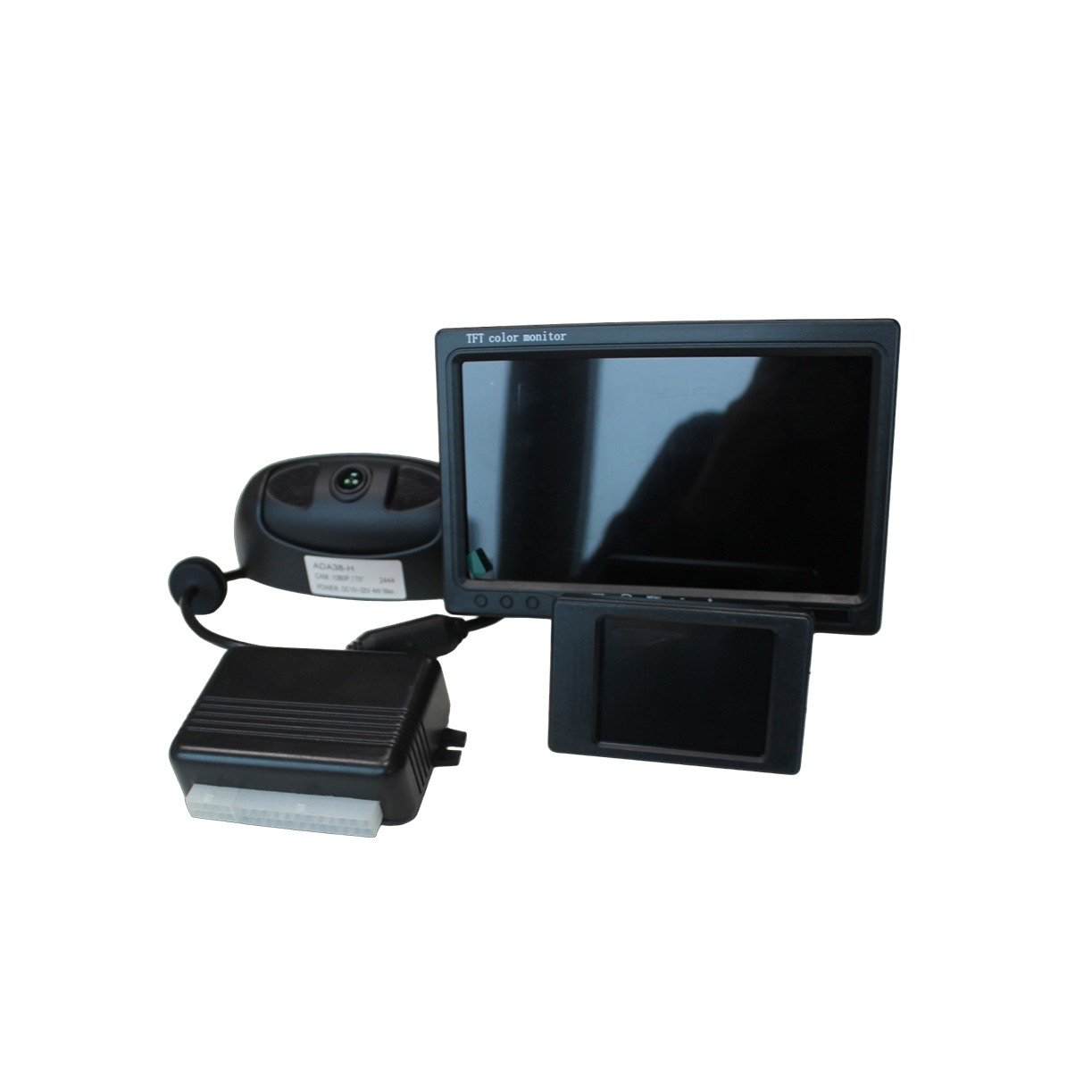

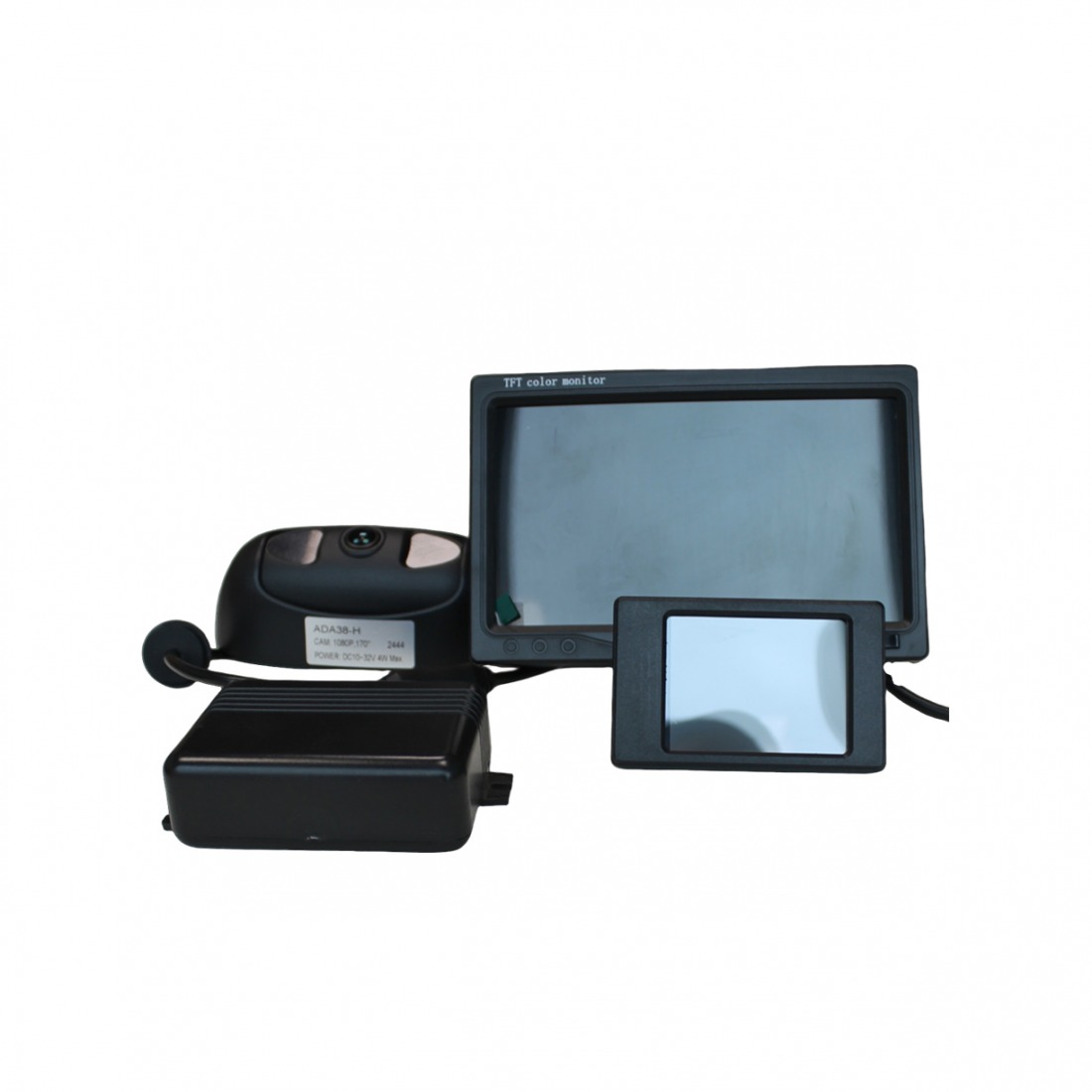

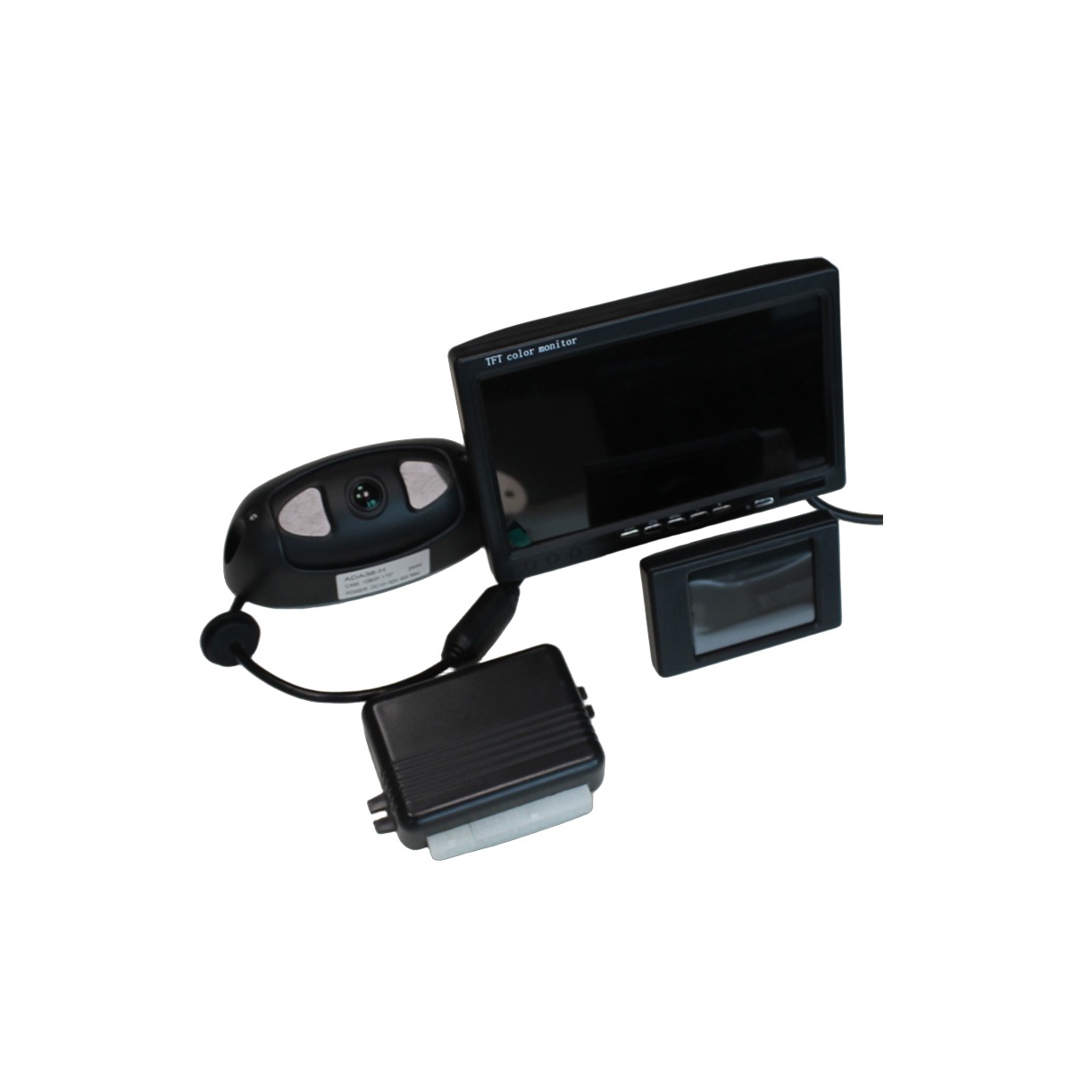

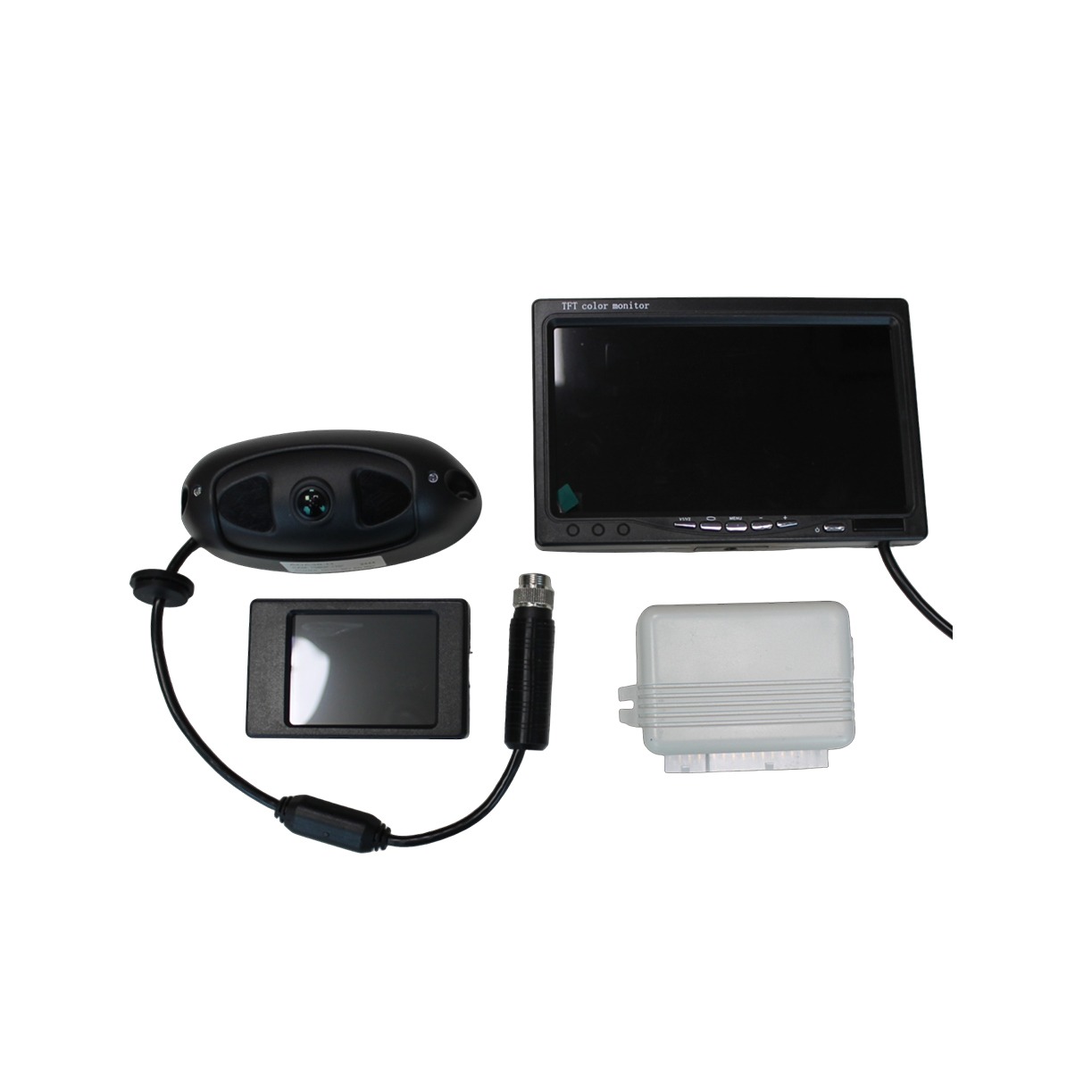

System Components Overview

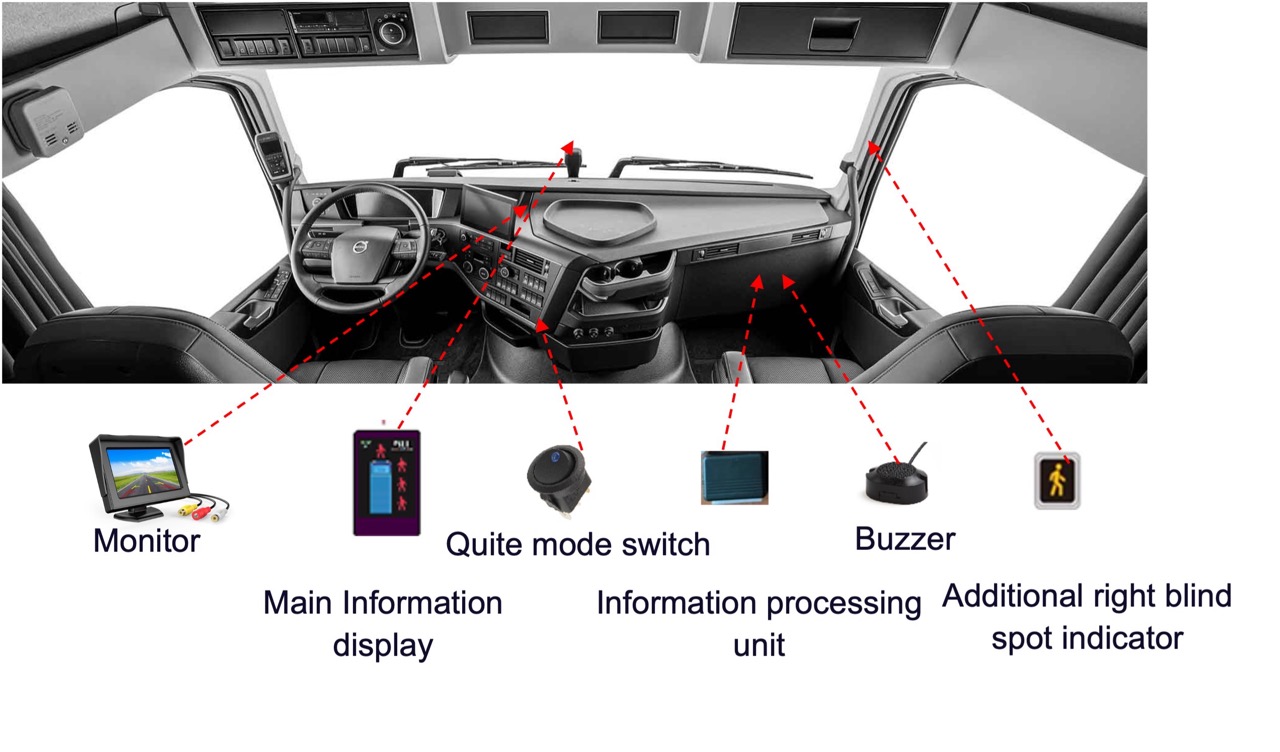

Inside the Vehicle

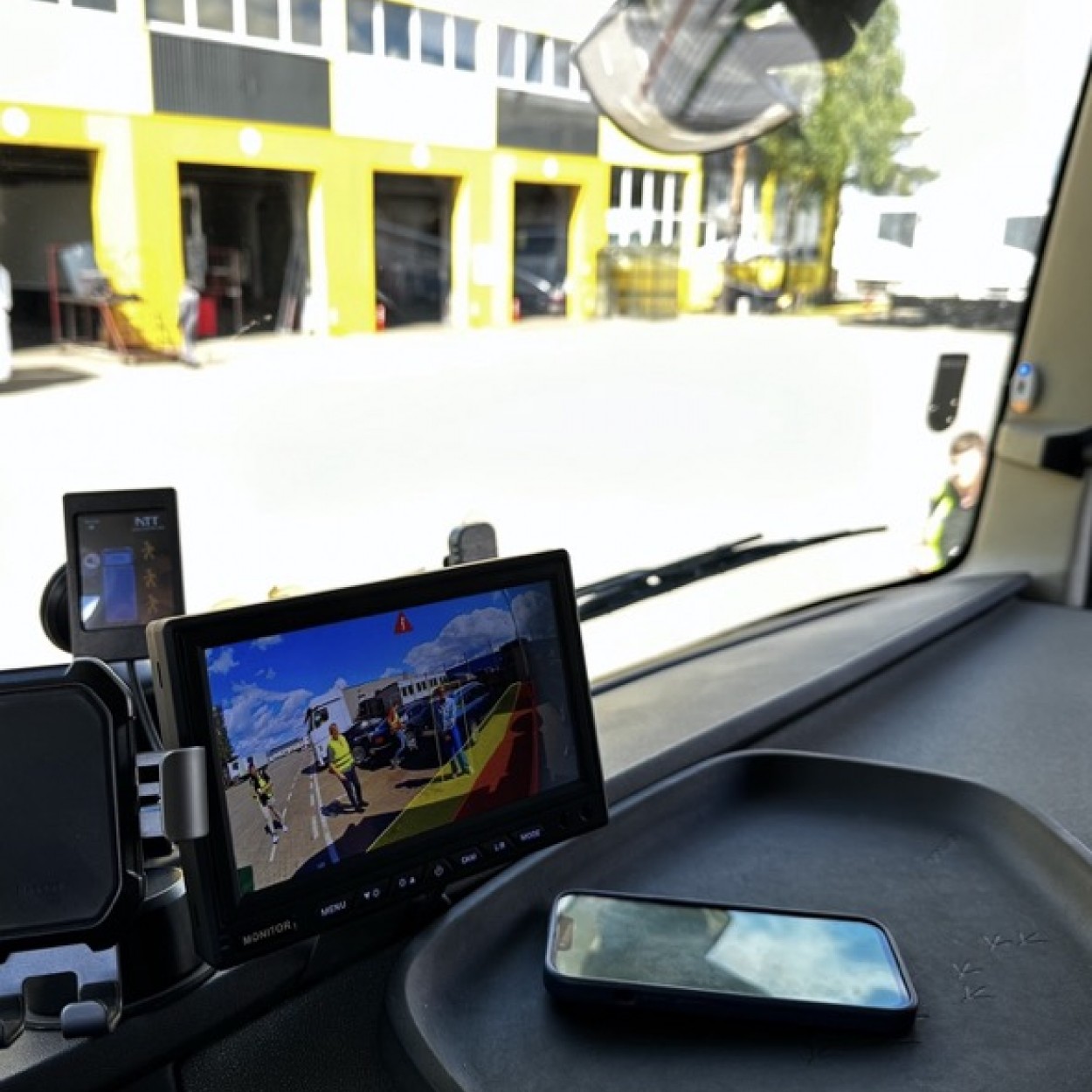

- Monitor: 7-inch display with real-time camera feed.
- Optical Warning Indicators: Two LED indicators (main dashboard and right A-pillar).
- Sound Warning Buzzer: Audible alert for system notifications and risk zones.
- Quiet Mode Switch: Disables outdoor speaker during nighttime operations.
- Information Processing Unit: Central unit collects vehicle data from CAN bus for optimal decision-making.

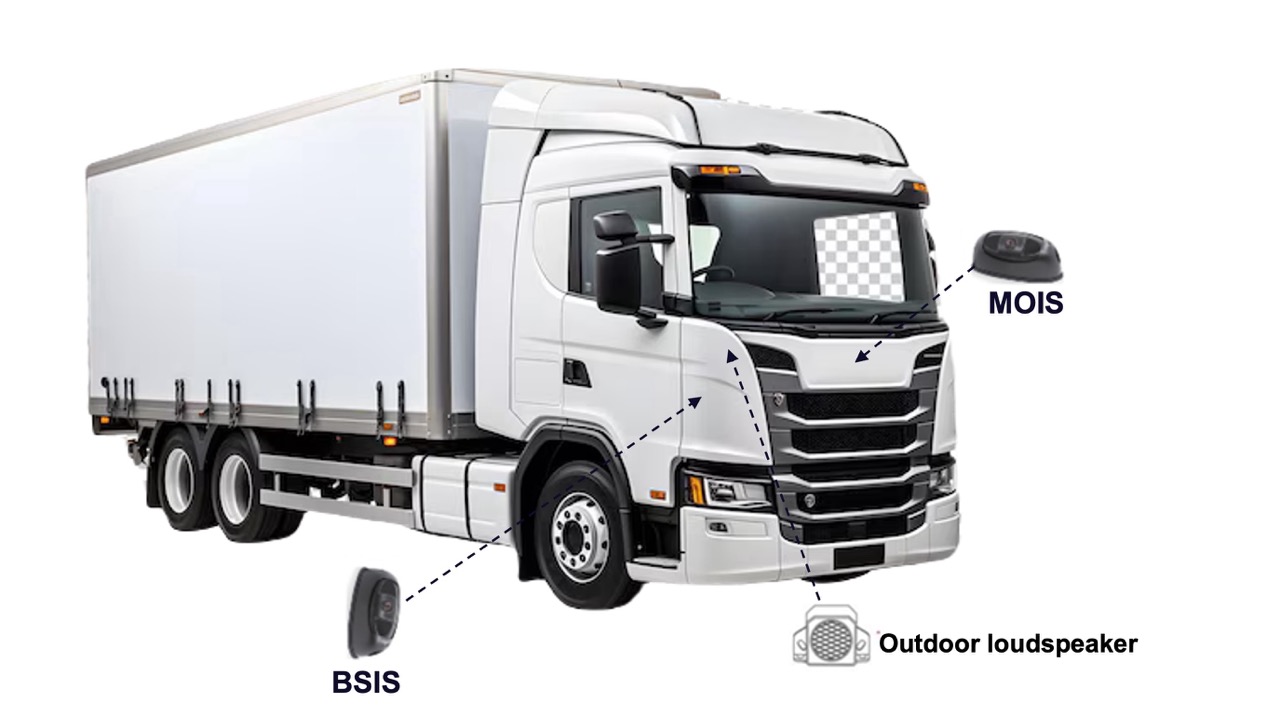

Outside the Vehicle
- AI Cameras: Front and side cameras detect VRUs using advanced pattern recognition.
- Outdoor Loudspeaker: White-noise and voice alerts for vulnerable road users during vehicle maneuvers.
Company Part Codes
| Code | Qty | Description |
|---|---|---|
| K-4100 | 1 | 7-inch Monitor |
| K-4101 | 1 | Video Camera |
| K-4397 | 1 | Keetec BS420 Parking Sensors (4) |
| K-4099 | 1 | Reverse Gear Signal GR03 |
| K-433 | 1 | Speed Sensor Board Node (35 km/h) |
| K-4567 | 2 | OFF-ON Button, Green LED |
| K-4066 | 6 | 4.8 mm Sockets with Red Wire |
| K-4102 | 1 | Connector – 1 EUR (excl. VAT) |
| K-4103 | 1 | Connector – 4 EUR (excl. VAT) |
| K-4455 | 1 | Extension Cable Set |
| K-4364 | 1 | USB 2.0 Plastic Holder |
Downloads
 | DVS 2024 Malfunctions AnalysisENRULT.pdf File Size132.44KB |
| | REPORT-NTT-DVS-2024-AVI.pdf File Size3.49MB |
| | NTT DVS 2024 ENG.pdf File Size1.1MB |
| | NTT DVS 2024 RUS .pdf File Size1.14MB |
| | NTT DVS 2024 LT.pdf File Size1.09MB |
| | DVS Installation until 2024 RUS.pdf File Size942.83KB |
| | DVS Installation until 2024 ENG.pdf File Size778.18KB |
| | DVS Installation until 2024 LT.pdf File Size808.43KB |
